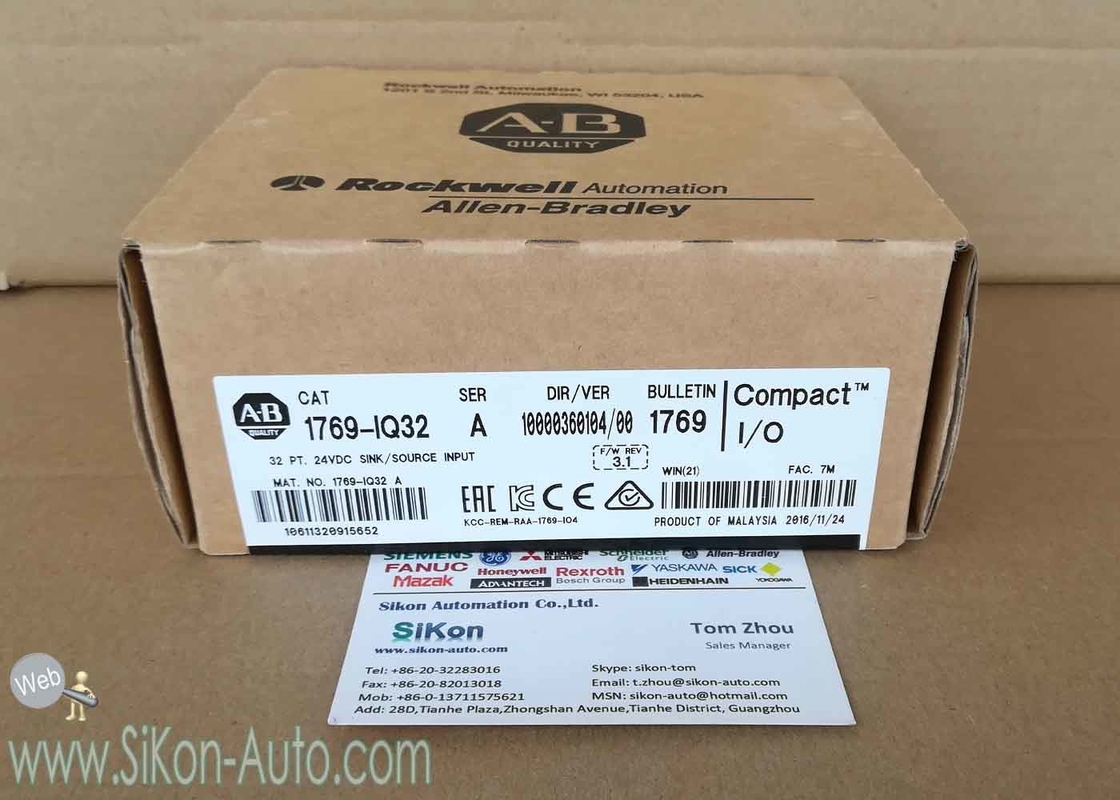

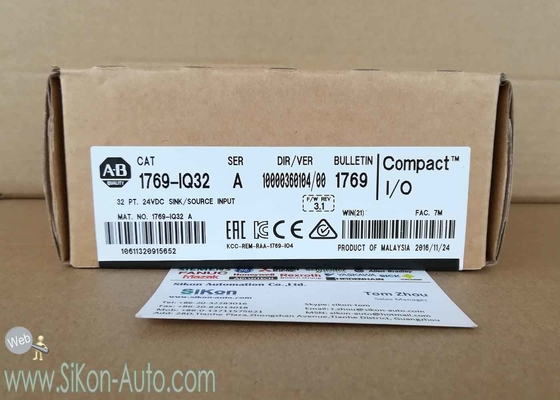

1769-IQ32 Allen Bradley PLC module 1769IQ32 CompactLogix 24VDC D/I Module

1769-IQ32 Allen Bradley PLC module 1769IQ32 CompactLogix 24VDC D/I Module

    • 1769-IQ32 Allen Bradley PLC module 1769IQ32 CompactLogix 24VDC D/I Module
    • 1769-IQ32 Allen Bradley PLC module 1769IQ32 CompactLogix 24VDC D/I Module
    • 1769-IQ32 Allen Bradley PLC module 1769IQ32 CompactLogix 24VDC D/I Module
    • 1769-IQ32 Allen Bradley PLC module 1769IQ32 CompactLogix 24VDC D/I Module
  • 1769-IQ32 Allen Bradley PLC module 1769IQ32 CompactLogix 24VDC D/I Module

    Product Details:

    Place of Origin: Malaysia
    Brand Name: Allen Bradley
    Model Number: 1769-IQ32

    Payment & Shipping Terms:

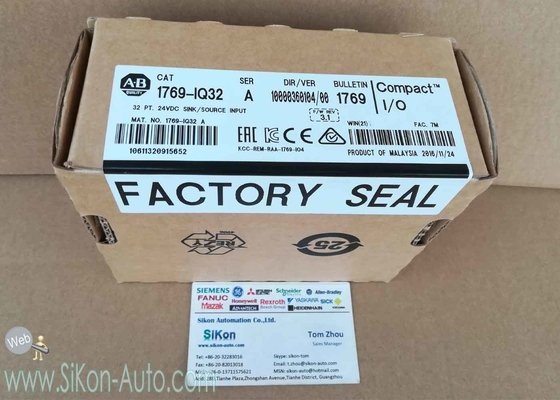

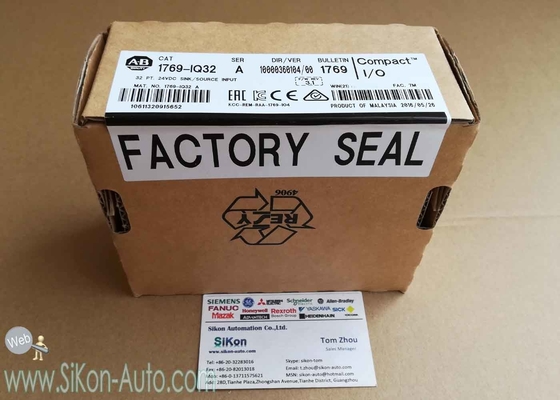

    Packaging Details: Factory Seal
    Delivery Time: 0-3 days
    Payment Terms: T/T, PayPal, Western Union
    Supply Ability: 100 pcs/day
    Contact Now
    Detailed Product Description
    Description: CompactLogix 32 Pt 24VDC D/I Module Weight: 0.41 KG
    Points: 32 Points



    1769-IQ32    1769IQ32





    DIGITAL INPUT MODULES
    32 Point High Speed 24VDC Input Module





    Product Details

    I/O Modules
    Digital Input Modules 32 Point High Speed 24VDC Input Module

    1769-IQ32 Allen Bradley PLC module 1769IQ32 CompactLogix 24VDC D/I Module



    The 1769 Compact I/O modules can be used as local I/O modules with these controllers:

    • CompactLogix 5370 L2 controllers

    • CompactLogix 5370 L3 controllers

    • Compact GuardLogix 5370 controllers

    • 1768 CompactLogix controllers

    The modules mechanically lock together with a tongue-and-groove design and have an integrated communication bus that is connected from module to module by a moveable bus connector.

    Each I/O module includes a built-in removable terminal block with fingersafe cover for connections to I/O sensors and actuators. The terminal block is behind a door at the front of the module. I/O wiring can be routed from beneath the module to the I/O terminals.

    For detailed specifications, see 1769 Compact I/O Modules Specifications Technical Data, publication 1769-TD006.



    1769 DC Digital Modules Cat. No. Inputs/Outputs Voltage Category Operating Voltage Range Backplane Current Power Supply Distance Rating 1769-IA8I 1769-IA8IK(2) 8 inputs, individually isolated 100/120V AC 79…132V AC, 47…63 Hz 90 mA @ 5.1V(1) (1) Maximum is 190 mA. 8 1769-IA16 1769-IA16K(2) (2) Module has conformal coating. 16 inputs 100/120V AC 79…132V AC, 47…63 Hz 115 mA @ 5.1V 8 1769-IM12 12 inputs 200/240V AC 159…265V AC, 47…63 Hz 100 mA @ 5.1V 8 1769-OA8 8 outputs 100/240V AC 85…265V AC 47…63 Hz 145 mA @ 5.1V 8 1769-OA16 1769-OA16K(2) 16 outputs 100/240V AC 85…265V AC 47…63 Hz 225 mA @ 5.1V 8 Cat. No. Inputs/Outputs Voltage Category Operating Voltage Range Backplane Current Power Supply Distance Rating 1769-IG16 16 inputs 5V DC TTL 4.5…5.5V DC 120 mA @ 5.1V 8 1769-IQ16 1769-IQ16K(1) (1) Module has conformal coating. 16 inputs 24V DC sink/source 10…30V DC @ 30 °C (86 °F) 10…26.4V DC @ 60 °C (140 °F) 115 mA @ 5.1V 8 1769-IQ16F 16 inputs, high speed 24V DC sink/source 10…30V DC @ 30 °C (86 °F) 10…26.4V DC @ 60 °C (140 °F) 100 mA @ 5.1V 8 1769-IQ32 1769-IQ32K(1) 32 inputs 24V DC sink/source 10…30V DC @ 30 °C (86 °F) 10…26.4V DC @ 60 °C (140 °F) 170 mA @ 5.1V 8 1769-IQ32T 32 inputs 24V DC sink/source 20.4…26.4V DC @ 60 °C (140 °F) 170 mA @ 5.1V 8 1769-IQ6XOW4 6 inputs 4 outputs 24V DC sink/source input AC/DC normally open relay contact outputs 10…30V DC @ 30 °C (86 °F) 10…26.4V DC @ 60 °C (140 °F) 105 mA @ 5.1V 50 mA @ 24V 8 1769-OB8 1769-OB8K(1) 8 outputs 24V DC source 20.4…26.4V DC 145 mA @ 5.1V 8 1769-OB16 1769-OB16K(1) 16 outputs 24V DC source 20.4…26.4V DC 200 mA @ 5.1V 8 1769-OB16P 16 outputs, protected 24V DC source 20.4…26.4V DC 160 mA @ 5.1V 8 1769-OB32 1769-OB32K(1) 32 outputs 24V DC source 20.4…26.4V DC 300 mA @ 5.1V 6 1769-OB32T 32 outputs 24V DC source 10.2…26.4V DC 220 mA @ 5.1V 8 1769-OG16 16 outputs 5V DC TTL 4.5…5.5V DC 200 mA @ 5.1V 8 1769-OV16 16 outputs 24V DC sink 20.4…26.4V DC 200 mA @ 5.1V 8 1769-OV32T 32 outputs 24V DC sink 10.2…26.4V DC 300 mA @ 5.1V 8



    1769 End Caps

    The final 1769 Compact I/O bank requires an end cap on the end without the expansion cable. The CompactLogix 5370 L2 controller comes with a right-end cap, so you do not need to order one separately.

    • Right end cap, catalog number 1769-ECR

    • Right end cap with conformal coating, catalog number 1769-ECRK

    • Left end cap, catalog number 1769-ECL

    • Left end cap with conformal coating, catalog number 1769-ECLK



    Shipping Terms

    Lead time:

    1-2 days
    Courier: DHL / UPS / FedEx
    Courier Shipping time: 1-3 Days
    Packing: NEW in Original packing / Used in neutral packing



    Warranty Terms:

    New: Twelve Months (One year)
    Used: Three Months








    1769-IQ32 Allen Bradley PLC module 1769IQ32 CompactLogix 24VDC D/I Module1769-IQ32 Allen Bradley PLC module 1769IQ32 CompactLogix 24VDC D/I Module1769-IQ32 Allen Bradley PLC module 1769IQ32 CompactLogix 24VDC D/I Module
