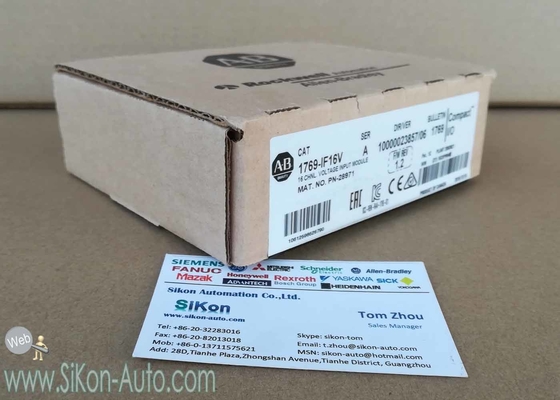

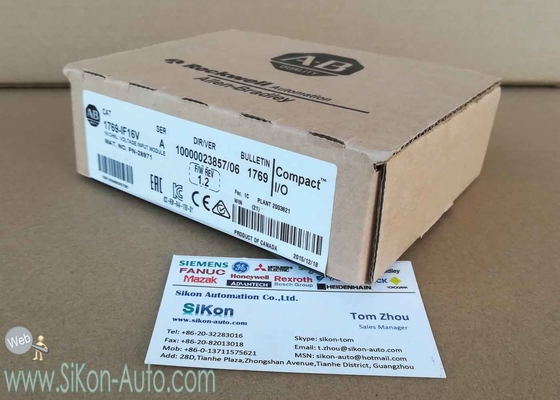

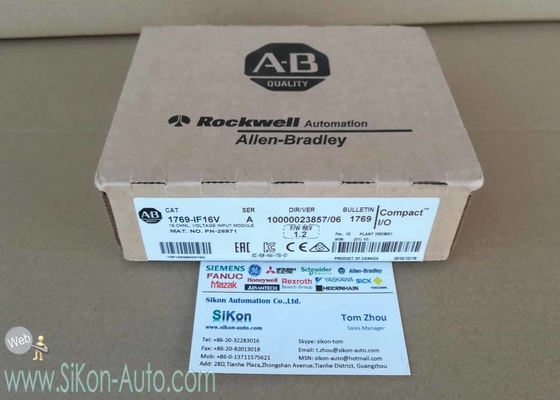

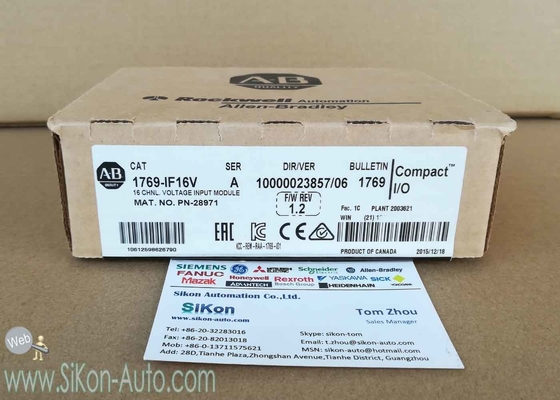

1769-IF16V Allen Bradley PLC module 1769IF16V CompactLogix A/I Voltage Module

1769-IF16V     1769IF16V

ANALOG INPUT MODULES
16 Channel Compact High- density Analog Voltage Input Module

Product Details

The 1769 Compact I/O modules can be used as local I/O modules with these controllers:

• CompactLogix 5370 L2 controllers

• CompactLogix 5370 L3 controllers

• Compact GuardLogix 5370 controllers

• 1768 CompactLogix controllers

The modules mechanically lock together with a tongue-and-groove design and have an integrated communication bus that is connected from module to module by a moveable bus connector.

Each I/O module includes a built-in removable terminal block with fingersafe cover for connections to I/O sensors and actuators. The terminal block is behind a door at the front of the module. I/O wiring can be routed from beneath the module to the I/O terminals.

For detailed specifications, see 1769 Compact I/O Modules Specifications Technical Data, publication 1769-TD006.

1769 Analog Modules Cat. No. Inputs/Outputs Operating Voltage Range Backplane Current Power Supply Distance Rating 1769-OW8 8 outputs 5…265V AC 5…125V DC 125 mA @ 5.1V 100 mA @ 24V 8 1769-OW8I 1769-OW8IK(1) (1) Module has conformal coating. 8 outputs, individually isolated 5…265V AC 5…125V DC 125 mA @ 5.1V 100 mA @ 24V 8 1769-OW16 1769-OW16K(1) 16 outputs 5…265V AC 5…125V DC 205 mA @ 5.1V 180 mA @ 24V 8 Cat. No. Inputs/Outputs Range Resolution Backplane Current Power Supply Distance Rating 1769-IF4 1769-IF4K(1) 4 inputs, differential or single-ended ±10V 0…10V 0…5V 1…5V 0…20 mA 4…20 mA 14 bits (unipolar) 14 bits plus sign (bipolar) 120 mA @ 5.1V 60 mA @ 24V 8 1769-IF4I 1769-IF4IK(1) 4 inputs, differential or single-ended, individually isolated ±10V 0…10V 0…5V 1…5V 0…20 mA 4…20 mA 16 bits (unipolar) 15 bits plus sign (bipolar) 145 mA @ 5.1V 125 mA @ 24V 8 1769-IF8 1769-IF8K(1) 8 inputs, differential or single-ended ±10V 0…10V 0…5V 1…5V 0…20 mA 4…20 mA 16 bits (unipolar) 15 bits plus sign (bipolar) 120 mA @ 5.1V 70 mA @ 24V 8 1769-IF16C 1769-IF16CK(1) 16 inputs, single-ended 0…20 mA 4…20 mA 16 bits (unipolar) 15 bits plus sign (bipolar) 190 mA @ 5.1V 70 mA @ 24V 8 1769-IF16V 1769-IF16VK(1) 16 inputs, single-ended ±10V 0…10V 0…5V 1…5V 16 bits (unipolar) 15 bits plus sign (bipolar) 190 mA @ 5.1V 70 mA @ 24V 8 1769-IF4XOF2 1769-IF4XOF2K(1) 4 inputs, differential or single-ended 2 outputs, single-ended 0…10V 0…20 mA Input: 8 bits plus sign Output: 8 bits plus sign 120 mA @ 5.1V 160 mA @ 24V 8 1769-IF4FXOF2F 4 inputs, fast differential or single-ended 2 outputs, fast single-ended ±10V 0…10V 0…5V 1…5V 0…20 mA 4…20 mA Input: 14 bits (unipolar) 14 bits plus sign (bipolar) Output: 13 bits (unipolar) 13 bits plus sign (bipolar) 220 mA @ 5.1V 120 mA @ 24V 8 1769-OF2 1769-OF2K(1) 2 outputs, single-ended ±10V 0…10V 0…5V 1…5V 0…20 mA 4…20 mA 14 bits (unipolar) 14 bits plus sign (bipolar) 120 mA @ 5.1V 120 mA @ 24V 8
