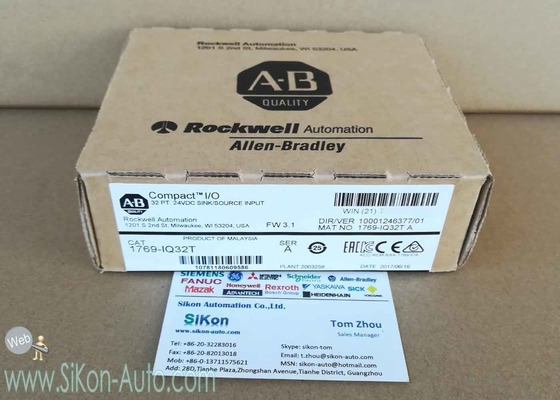

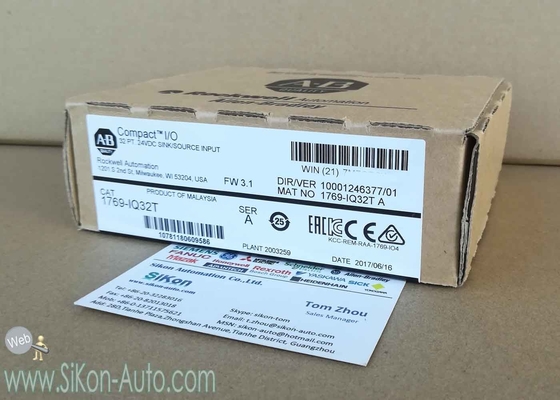

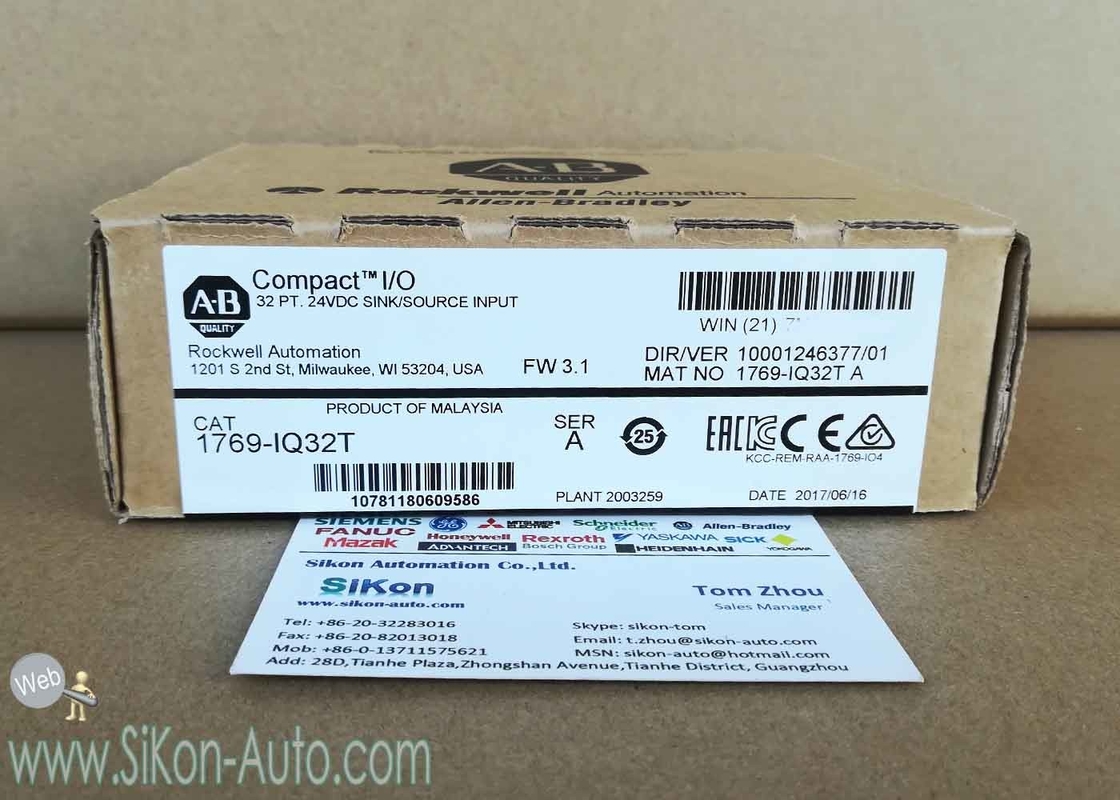

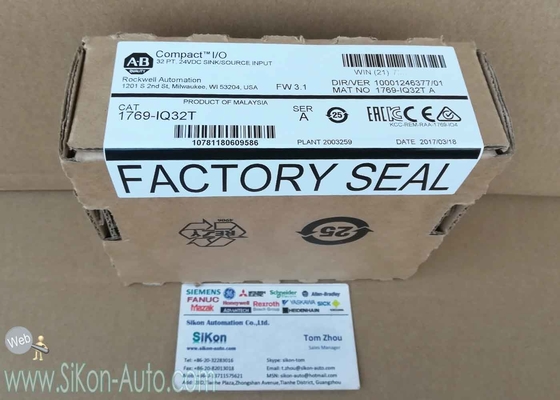

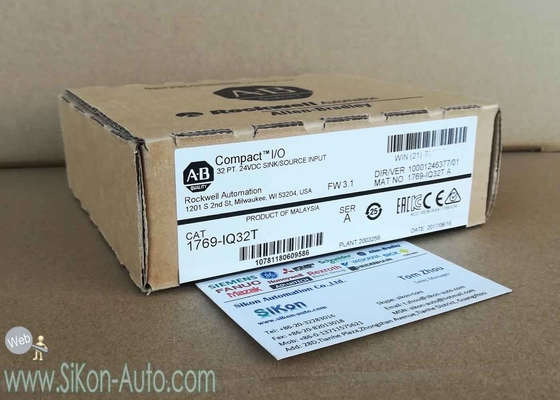

1769-IQ32T Allen Bradley PLC module 1769IQ32T CMPLX 24VDC D/I Terminated Module

1769-IQ32T     1769IQ32T

DIGITAL INPUT MODULES

CMPLX 32 Pt 24VDC D/I Terminated Module

Product Details

The 1769 Compact I/O modules can be used as local I/O modules with these controllers:

• CompactLogix 5370 L2 controllers

• CompactLogix 5370 L3 controllers

• Compact GuardLogix 5370 controllers

• 1768 CompactLogix controllers

The modules mechanically lock together with a tongue-and-groove design and have an integrated communication bus that is connected from module to module by a moveable bus connector.

Each I/O module includes a built-in removable terminal block with fingersafe cover for connections to I/O sensors and actuators. The terminal block is behind a door at the front of the module. I/O wiring can be routed from beneath the module to the I/O terminals.

For detailed specifications, see 1769 Compact I/O Modules Specifications Technical Data, publication 1769-TD006.

1769 DC Digital Modules Cat. No. Inputs/Outputs Voltage Category Operating Voltage Range Backplane Current Power Supply Distance Rating 1769-IA8I 1769-IA8IK(2) 8 inputs, individually isolated 100/120V AC 79…132V AC, 47…63 Hz 90 mA @ 5.1V(1) (1) Maximum is 190 mA. 8 1769-IA16 1769-IA16K(2) (2) Module has conformal coating. 16 inputs 100/120V AC 79…132V AC, 47…63 Hz 115 mA @ 5.1V 8 1769-IM12 12 inputs 200/240V AC 159…265V AC, 47…63 Hz 100 mA @ 5.1V 8 1769-OA8 8 outputs 100/240V AC 85…265V AC 47…63 Hz 145 mA @ 5.1V 8 1769-OA16 1769-OA16K(2) 16 outputs 100/240V AC 85…265V AC 47…63 Hz 225 mA @ 5.1V 8 Cat. No. Inputs/Outputs Voltage Category Operating Voltage Range Backplane Current Power Supply Distance Rating 1769-IG16 16 inputs 5V DC TTL 4.5…5.5V DC 120 mA @ 5.1V 8 1769-IQ16 1769-IQ16K(1) (1) Module has conformal coating. 16 inputs 24V DC sink/source 10…30V DC @ 30 °C (86 °F) 10…26.4V DC @ 60 °C (140 °F) 115 mA @ 5.1V 8 1769-IQ16F 16 inputs, high speed 24V DC sink/source 10…30V DC @ 30 °C (86 °F) 10…26.4V DC @ 60 °C (140 °F) 100 mA @ 5.1V 8 1769-IQ32 1769-IQ32K(1) 32 inputs 24V DC sink/source 10…30V DC @ 30 °C (86 °F) 10…26.4V DC @ 60 °C (140 °F) 170 mA @ 5.1V 8 1769-IQ32T 32 inputs 24V DC sink/source 20.4…26.4V DC @ 60 °C (140 °F) 170 mA @ 5.1V 8 1769-IQ6XOW4 6 inputs 4 outputs 24V DC sink/source input AC/DC normally open relay contact outputs 10…30V DC @ 30 °C (86 °F) 10…26.4V DC @ 60 °C (140 °F) 105 mA @ 5.1V 50 mA @ 24V 8 1769-OB8 1769-OB8K(1) 8 outputs 24V DC source 20.4…26.4V DC 145 mA @ 5.1V 8 1769-OB16 1769-OB16K(1) 16 outputs 24V DC source 20.4…26.4V DC 200 mA @ 5.1V 8 1769-OB16P 16 outputs, protected 24V DC source 20.4…26.4V DC 160 mA @ 5.1V 8 1769-OB32 1769-OB32K(1) 32 outputs 24V DC source 20.4…26.4V DC 300 mA @ 5.1V 6 1769-OB32T 32 outputs 24V DC source 10.2…26.4V DC 220 mA @ 5.1V 8 1769-OG16 16 outputs 5V DC TTL 4.5…5.5V DC 200 mA @ 5.1V 8 1769-OV16 16 outputs 24V DC sink 20.4…26.4V DC 200 mA @ 5.1V 8 1769-OV32T 32 outputs 24V DC sink 10.2…26.4V DC 300 mA @ 5.1V 8

Removable Terminal Kits

You can order removable terminal kits with the CompactLogix 5370 L1 and L2 controllers separately. The kits are used to connect wiring to the controllers. The following table describes the kits.

Cat. Nos. Controllers Supported Description 1769-RTB45 CompactLogix 5370 L1

• Four 10-pin connectors that are used to connect wiring to the embedded digital I/O module of the controller.

• One 5-pin connector that is used to connect an external 24V DC power source to the controller. 1769-RTB40DIO CompactLogix 5370 L2

Four 10-pin connectors that are used to connect wiring to the embedded digital I/O module of the controller. 1769-RTB40AIO 1769-L24ER-QBFC1B and 1769-L27ERM-QBFC1B

Four 10-pin connectors that are used to connect wiring to the embedded analog I/O module of the controller.
