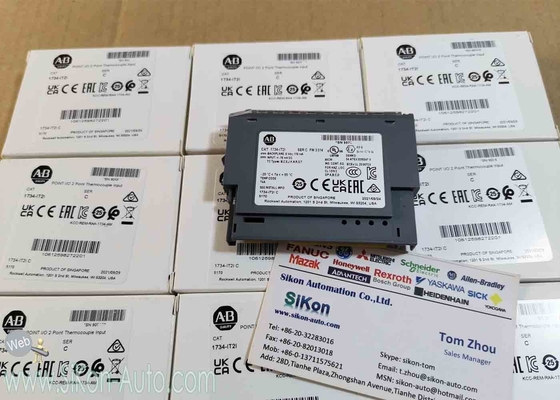

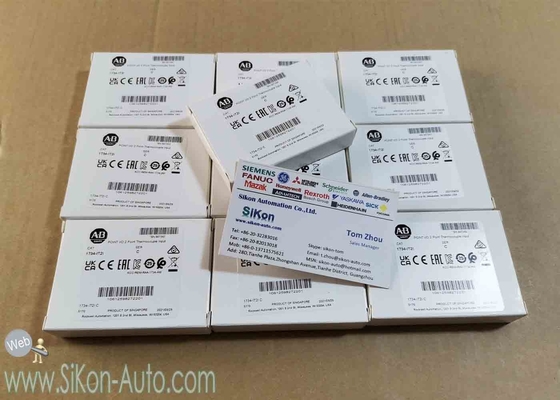

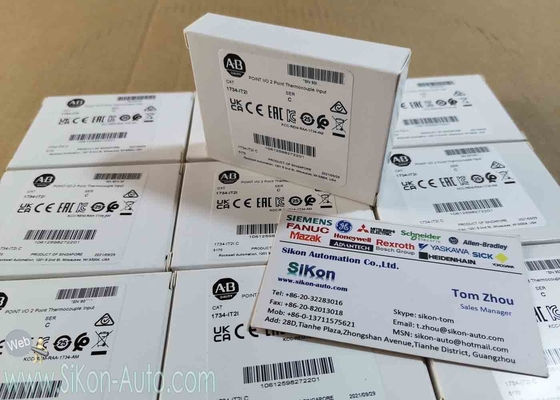

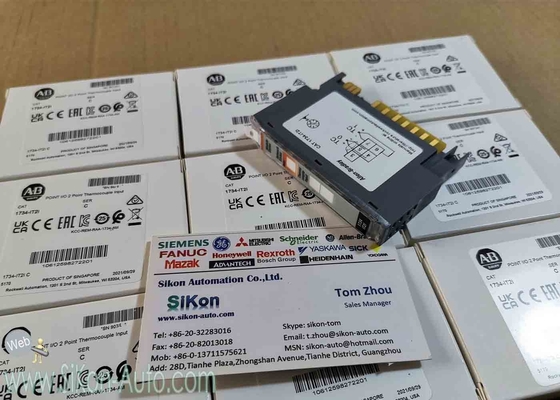

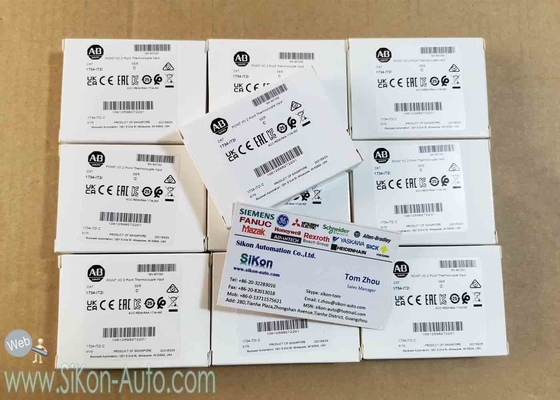

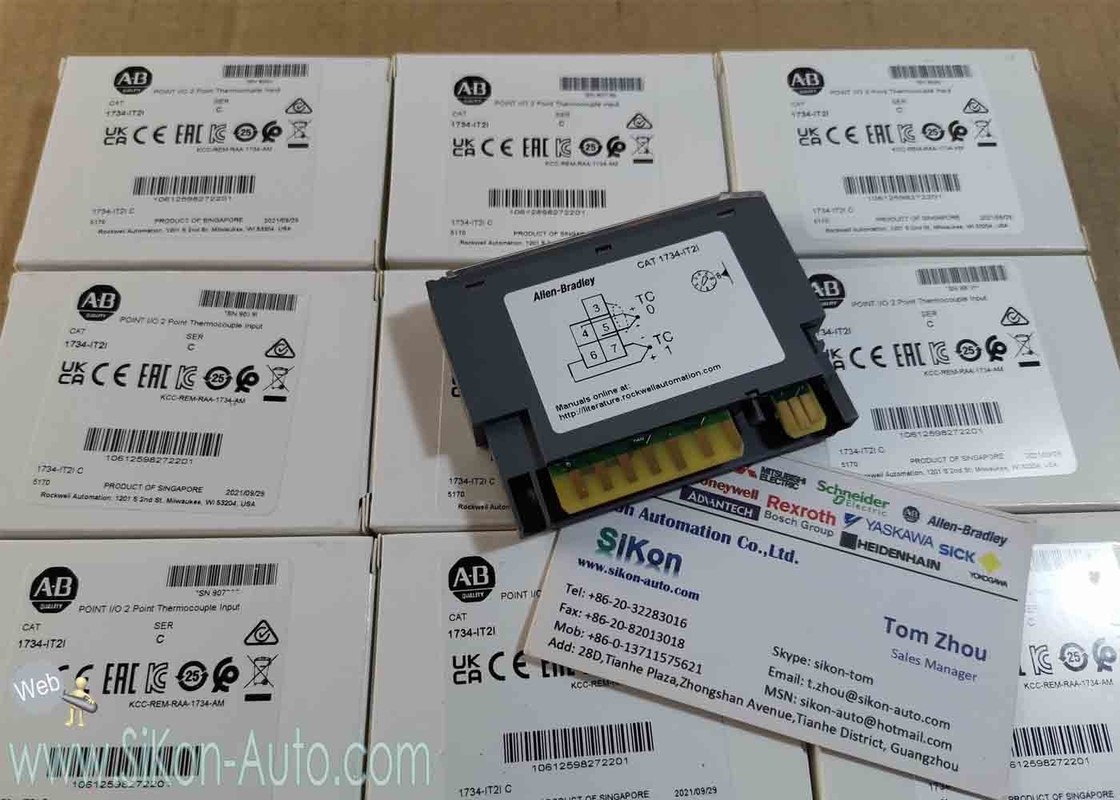

1734-IT2I Allen Bradley PLC module 1734IT2I POINT I/O 2 Point Thermocouple Input

1734-IT2I    1734IT2I

POINT I/O 2 Point Thermocouple Input

Product Details

How to Select a CompactLogix System?

1  • Provides an overview of the CompactLogix™ system • Provides basic system examples • Select a controller: Standard Safety On-Machine™ Real-time control + Microsoft Windows® applications

Select: • Networks – EtherNet/IP™ mode – EtherNet/IP network topology – Network communication rate • Communication interfaces • Associated 2  cables and network equipment

3  Select: • Controller that supports integrated motion on an EtherNet/IP network • Drives, motors, and accessories (use Motion Analyzer)

4  Select: • Controller that supports integrated safety on an EtherNet/IP network • Safety I/O and Safety Devices • Drives, motors, and accessories (use Motion Analyzer)

5  Select: • Compact 5000™ I/O, 1734 POINT I/O™, or 1769 Compact I/O™ • Associated cables and accessories

6  Select: • Additional 1769 power supplies as needed

The CompactLogix system is designed to provide a Logix solution for differently sized applications. Most CompactLogix controllers are ideal for small and mid-size applications. These applications are machine-level control applications. The CompactLogix 5480 controllers, however, are more ideal for use in mid to large-size applications. The CompactLogix platform brings together the benefits of a common programming environment, common networks, and common control engine in a small footprint with high performance. Combined with 1769 Compact I/O or Compact 5000 I/O modules, the CompactLogix platform supports simple to more complex motion, with unprecedented power and scalability. A CompactLogix platform is ideal for systems that require standalone and system-connected control over EtherNet/IP, ControlNet®, or DeviceNet® networks. For detailed specifications, see the following publications: • CompactLogix 5380, Compact GuardLogix 5380, and CompactLogix 5480 Controllers Specifications Technical Data, publication 5069-TD002 • CompactLogix Controllers Specifications Technical Data, publication 1769-TD005

1769 Analog Modules Cat. No. Inputs/Outputs Operating Voltage Range Backplane Current Power Supply Distance Rating 1769-OW8 8 outputs 5…265V AC 5…125V DC 125 mA @ 5.1V 100 mA @ 24V 8 1769-OW8I 1769-OW8IK(1) (1) Module has conformal coating. 8 outputs, individually isolated 5…265V AC 5…125V DC 125 mA @ 5.1V 100 mA @ 24V 8 1769-OW16 1769-OW16K(1) 16 outputs 5…265V AC 5…125V DC 205 mA @ 5.1V 180 mA @ 24V 8 Cat. No. Inputs/Outputs Range Resolution Backplane Current Power Supply Distance Rating 1769-IF4 1769-IF4K(1) 4 inputs, differential or single-ended ±10V 0…10V 0…5V 1…5V 0…20 mA 4…20 mA 14 bits (unipolar) 14 bits plus sign (bipolar) 120 mA @ 5.1V 60 mA @ 24V 8 1769-IF4I 1769-IF4IK(1) 4 inputs, differential or single-ended, individually isolated ±10V 0…10V 0…5V 1…5V 0…20 mA 4…20 mA 16 bits (unipolar) 15 bits plus sign (bipolar) 145 mA @ 5.1V 125 mA @ 24V 8 1769-IF8 1769-IF8K(1) 8 inputs, differential or single-ended ±10V 0…10V 0…5V 1…5V 0…20 mA 4…20 mA 16 bits (unipolar) 15 bits plus sign (bipolar) 120 mA @ 5.1V 70 mA @ 24V 8 1769-IF16C 1769-IF16CK(1) 16 inputs, single-ended 0…20 mA 4…20 mA 16 bits (unipolar) 15 bits plus sign (bipolar) 190 mA @ 5.1V 70 mA @ 24V 8 1769-IF16V 1769-IF16VK(1) 16 inputs, single-ended ±10V 0…10V 0…5V 1…5V 16 bits (unipolar) 15 bits plus sign (bipolar) 190 mA @ 5.1V 70 mA @ 24V 8 1769-IF4XOF2 1769-IF4XOF2K(1) 4 inputs, differential or single-ended 2 outputs, single-ended 0…10V 0…20 mA Input: 8 bits plus sign Output: 8 bits plus sign 120 mA @ 5.1V 160 mA @ 24V 8 1769-IF4FXOF2F 4 inputs, fast differential or single-ended 2 outputs, fast single-ended ±10V 0…10V 0…5V 1…5V 0…20 mA 4…20 mA Input: 14 bits (unipolar) 14 bits plus sign (bipolar) Output: 13 bits (unipolar) 13 bits plus sign (bipolar) 220 mA @ 5.1V 120 mA @ 24V 8 1769-OF2 1769-OF2K(1) 2 outputs, single-ended ±10V 0…10V 0…5V 1…5V 0…20 mA 4…20 mA 14 bits (unipolar) 14 bits plus sign (bipolar) 120 mA @ 5.1V 120 mA @ 24V 8
